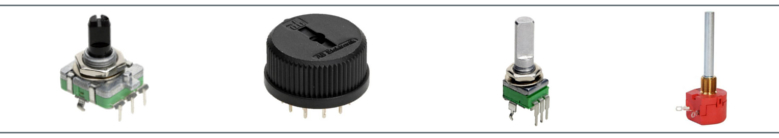

IN ADDITION TO PRECISION SENSORS, AB ELEKTRONIK ALSO MANUFACTURE A RANGE OF COMPONENTS SUCH AS SWITCHED AND POTENTIOMENETRS FOR MEDICAL, INDUSTRIAL AND MECHANICAL APPLICATIONS.


The Range Includes:

Series 06

Dimension:

6 mm

Resistance Range:

200 Ohm - 1 MOhm

Power Rating:

0.1 W / 50°C

Rotation:

mech. 210° ± 10°

Series 10/SR

Dimension:

8.5 mm

Resistance Range:

200 Ohm - 1 MOhm

Power Rating:

0.1 W / 50°C

Rotation:

mech. 210° ± 10°
elect. 240° ± 15°

Series R 16

Dimension:

16.9 mm

Resistance Range:

5 KOhm - 2 MOhm

Power Rating:

0.125 W

Rotation:

mech. 300° ± 5°

Series 45

Dimension:

24 mm

Resistance Range:

500 Ohm - 10 M Ohm lin
1 KOhm - 10 MOhm log

Power Rating:

0.5 W lin / 40°C
0.25 W log / 40°C

Rotation:

mech. 300° ± 5°
elektr. 270° ± 5°

Series C 06

Dimension:

6 mm

Resistance Range:

100 Ohm - 1 MOhm

Power Rating:

0.3 W / 50°C

Rotation:

mech. 240° ± 10°

Series C 10/TGN

Dimension:

8.8 mm

Resistance Range:

100 Ohm - 1 MOhm

Power Rating:

0.5 W / 70°C

Rotation:

mech. 260° ± 20°C

Series 415

Dimension:

15 mm

Resistance Range:

22 Ohm - 4.7 MOhm

Power Rating:

1 W / 70°C

Rotation:

mech. 270° ± 10°C

Series 456

Dimension:

15 mm

Resistance Range:

22 Ohm - 4.7 M Ohm lin

Power Rating:

1 W / 70°C
(1.5 W / 40°C)

Rotation:

mech. 270° ± 10°

Series C16

Dimension:

16 mm

Resistance Range:

22 Ohm - 10 MOhm

Power Rating:

0.5 W / 70°C
(1 W / 40 W)

Rotation:

mech. 270° ± 5°

Series CP16

Dimension:

16 mm

Resistance Range:

1 KOhm - 10 KOhm

Power Rating:

1 W / 40°C

Rotation:

mech. 300° ± 5°

Series 115

Dimension:

20.4 mm

Resistance Range:

1 Ohm - 22 KOhm

Power Rating:

2 W / 40°C

Rotation:

mech. 270° ± 10°

Series ABW1

Dimension:

23 mm

Resistance Range:

5 Ohm - 22 KOhm

Power Rating:

1 W / 40°C

Rotation:

mech. 285° ± 5°
elektr. 265° ± 5°

Series ABW2

Dimension:

28.5 mm

Resistance Range:

5 Ohm - 22 KOhm

Power Rating:

2 W / 40°C

Rotation:

mech. 300° ± 5°
elektr. 270° ± 5°

Series AW

Dimension:

24 mm

Resistance Range:

5 Ohm - 25 KOhm

Power Rating:

2 W / 70°C

Rotation:

mech. 360° ± 15°

elektr. 360° ± 10°

Series P

Dimension:

P 10 = 35 mm
P 30 = 46 mm
P 60 = 53 mm

Resistance Range:

P 10 4.7 Ohm - 4.7 KOhm
P 30 4.7 Ohm - 4.7 KOhm
P 60 4.7 Ohm - 4.7 KOhm

Power Rating:

10 W / 250 °C
30 W / 250 °C
60 W / 250 °C

Rotation:

mech. 270° ± 10°

Series: EAH

Design Features
  • DIL Switches
  • IC housing, for automates
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated, terminals tinned

Series: EAM

Design Features
  • DIL Switches
  • End stackable, screen 0,1"
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-O
  • Contacts gold plated, terminals tinned

Series: EDG

Design Features
  • DIL Slide Switches
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated

Series: EDS

Design Features
  • DIL slide Switches
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts silver plated

Series: EHS

Design Features
  • DIL slide switches SMD half pitch type
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated, terminals tinned

Series: EPD

Design Features
  • DIL switches side operation - Piano SMD
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated, terminals tinned

Series: EPG

Design Features
  • DIL switches, side operation – Piano
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated

Series: EPS

Design Features
  • DIL switches, side operation – Piano
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts silver plated

Series: ESD

Design Features
  • DIL switches, end stackable, screen 0,1", SMD
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated, terminals tinned, Gull Wing

Series: ESL

Design Features
  • DIL switches, end stackable, screen 0,1", SMD
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated, terminals tinned, T-Bend

Series: ETA

Design Features
  • DIL switches, 3 switch positions
  • High coding possibilities
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold, terminals tinned T-Bend

Series: ETS

Design Features
  • DIL switches, 3 switch positions, SMD
  • High coding possibilities
  • Base epoxy sealed
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated, terminals tinned, T-Bend

Series: ERD

Design Features
  • 8, 10 or 16 switch positions
  • Real or complement code
  • Standard screen 2,54 mm
  • Self quenching plastic acc. UL 94 V-0
  • Contacts gold plated

Series 417

Dimension:

19.4 mm

Resistance Range:

1 x 12 to 1 x 2
2 x 6 to 2 x 2
3 x 4 to 3 x 2
4 x 3 to 4 x 2, 6 x 2

Power Rating:

150 V DC / AC 130 mA
max 5VA

Rotation:

Index angle:
Operating life:
Switching mode:
Isolation resistance:

30°
15.000 cycles
not shorting / shorting
1 x 109 Ohm

Series 419

Dimension:

19.4 mm

Resistance Range:

1 x 12 to 1 x 2
2 x 6 to 2 x 2
3 x 4 to 3 x 2
4 x 3 to 4 x 2, 6 x 2

Power Rating:

150 V DC / AC 130 mA
max 5VA

Rotation:

Index angle:
Operating life:
Switching mode:
Isolation resistance:

30°
15.000 cycles
not shorting / shorting
1 x 109 Ohm

Series 420

Dimension:

19.4 mm

Resistance Range:

1 x 12 to 1 x 2
2 x 6 to 2 x 2
3 x 4 to 3 x 2
4 x 3 to 4 x 2, 6 x 2

Power Rating:

150 V DC / AC 130 mA
max 5VA

Rotation:

Index angle:
Operating life:
Switching mode:
Isolation resistance:

30°
15.000 cycles
not shorting / shorting
1 x 109 Ohm
