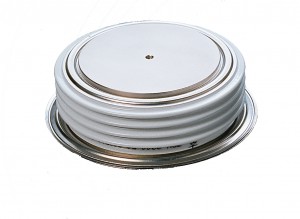

dynex rectifier diodes
Please see the table below for a list of dynex rectifier diodes that Euro-Tech are able to supply..
| Part Number | VRRM (V) | IF(AV) at TC=100°C (A) | IFSM at Tvj VR=0 (kA) | I2t at Tvj VR = 0 (MA2s) | Rth(j-c) (°C/W) | IFM (A) | VFM @ IFM & Tcase = 25ºC (V) | Outline Type Code | Flange OD Contact OD Height (mm) |
|---|---|---|---|---|---|---|---|---|---|
| DRD520T14 | 1400 | 520 | 5.9 | 0.17405 | 0.08 | 800 | 1.45 | T | 42/19/13.5 |
| DRD1360D14 | 1400 | 1360 | 15.2 | 1.1552 | 0.035 | 1500 | 1.3 | D | 47/29/14.5 |
| DRD1510G14 | 1400 | 1510 | 16.8 | 1.4112 | 0.035 | 1500 | 1.2 | G | 58/34/26.5 |
| DRD2770F14 | 1400 | 2770 | 31 | 4.805 | 0.02 | 1500 | 1.05 | F | 75/47/26.5 |
| DRD3220X14 | 1400 | 3220 | 35.8 | 6.41 | 0.018 | 3000 | 1.15 | X | 85/53/26.5 |
| DRD4650C14 | 1400 | 4650 | 45 | 10.125 | 0.0125 | 3000 | 1.05 | C | 100/63/26.5 |
| DRD6080V14 | 1400 | 6080 | 60 | 18 | 0.01 | 3000 | 1.05 | V | 110/73/26.5 |
| DRD410T22 | 2200 | 410 | 4.9 | 0.12005 | 0.08 | 800 | 1.85 | T | 42/19/13.5 |
| DRD990D22 | 2200 | 990 | 12.5 | 0.78125 | 0.035 | 1500 | 1.60 | D | 47/29/14.5 |
| DRD1100G22 | 2200 | 1100 | 13.9 | 0.966 | 0.035 | 1500 | 1.45 | G | 58/34/26.5 |
| DRD2030F22 | 2200 | 2030 | 25.7 | 3.30245 | 0.02 | 1500 | 1.20 | F | 75/47/26.5 |
| DRD2360X22 | 2200 | 2360 | 29.8 | 4.44 | 0.018 | 3000 | 1.35 | X | 85/53/26.5 |
| DRD3430C22 | 2200 | 3430 | 42.2 | 8.9 | 0.0125 | 3000 | 1.20 | C | 100/63/26.5 |
| DRD4460V22 | 2200 | 4460 | 56.4 | 15.9048 | 0.01 | 3000 | 1.15 | V | 110/73/26.5 |
| DRD6380W22 | 2200 | 6380 | 78 | 30.42 | 0.007 | 6000 | 1.09 | W | 120/84/26.5 |
| DRD6800A22 | 2200 | 6800 | 94 | 44.18 | 0.0057 | 6000 | 1.03 | A | 150/100/35 |
| DRD8880H22 | 2200 | 8880 | 125 | 78.125 | 0.004 | 6000 | 0.98 | H | 172/110/35 |
| DRD850D34 | 3400 | 850 | 10.8 | 0.583 | 0.035 | 1500 | 1.95 | D | 47/29/14.5 |
| DRD960G34 | 3400 | 960 | 12 | 0.72 | 0.035 | 1500 | 1.7 | G | 58/34/26.5 |
| DRD1830F34 | 3400 | 1830 | 23 | 2.645 | 0.02 | 1500 | 1.35 | F | 75/47/26.5 |
| DRD2050X34 | 3400 | 2050 | 25.8 | 3.3282 | 0.018 | 3000 | 1.55 | X | 85/53/26.5 |
| DRD2980C34 | 3400 | 2980 | 36.5 | 6.66125 | 0.0125 | 3000 | 1.35 | C | 100/63/26.5 |
| DRD3920V34 | 3400 | 3920 | 49.5 | 12.25125 | 0.01 | 3000 | 1.25 | V | 110/73/26.5 |
| DRD5240W34 | 3400 | 5240 | 64.2 | 20.6082 | 0.007 | 6000 | 1.29 | W | 120/84/26.5 |
| DRD6140A34 | 3400 | 6140 | 84.4 | 35.6168 | 0.0057 | 6000 | 1.1 | A | 150/100/35 |
| DRD7810H34 | 3400 | 7810 | 118 | 69.62 | 0.004 | 6000 | 1.1 | H | 172/110/35 |
| DRD870G40 | 4000 | 870 | 15 | 1.125 | 0.032 | 1800 | 1.6 | G | 58.5/34/27 |
| DRD1230F40 | 4000 | 1225 | 25 | 3.125 | 0.022 | 3400 | 1.6 | F | 73/47/27 |
| DRD2960Y40 | 4000 | 2960 | 62.5 | 19.53 | 0.0095 | 3000 | 1.25 | Y | 112.5/73/37.3 |
| DRD3390V40 | 4000 | 3388 | 62.5 | 19.53 | 0.0075 | 3000 | 1.25 | V | 110/73/26.5 |
| DRD4350A40 | 4000 | 4350 | 83 | 34.5 | 0.007 | 3000 | 1.06 | A | 151/100/37.5 |
| DRA170E44 | 4400 | 170 | 1.5 | 0.01125 | 0.115 | 300 | 2.1 | E | 42/25/15 |
| DRD2000L45 | 4500 | 2000 | 31 | 3.92 | 0.013 | 3000 | 1.4 | L | 102/63/32.9 |
| DRD6290H45 | 4500 | 6290 | 99.4 | 49.4 | 0.004 | 6000 | 1.19 | H | 172/110/36 |
| DRD1100F48 | 4800 | 1105 | 20.5 | 2.125 | 0.022 | 3400 | 1.8 | F | 73/47/27 |
| DRD710G50 | 5000 | 710 | 11.5 | 0.66 | 0.032 | 1800 | 1.8 | G | 58.5/34/ 27 |
| DRD2690Y50 | 5000 | 2691 | 55 | 15.12 | 0.0095 | 3000 | 1.21 | Y | 112.5/73/37.3 |
| DRD3080V50 | 5000 | 3083 | 55 | 15.12 | 0.0075 | 3000 | 1.21 | V | 110/73/26.5 |
| DRD3770A52 | 5200 | 3768 | 70 | 24.5 | 0.0065 | 3000 | 1.17 | A | 148/100 /35.0 |
| DRD5940H55 | 5500 | 5940 | 93.60 | 43.8 | 0.004 | 6000 | 1.26 | H | 172/110/36 |
| DRD630G60 | 6000 | 630 | 10.5 | 0.555 | 0.032 | 1800 | 2.1 | G | 58.5/34/27 |
| DRD1010F60 | 6000 | 1015 | 16.5 | 1.425 | 0.022 | 3400 | 2.1 | F | 73/47/27 |
| DRD5150H65 | 6500 | 5150 | 82.5 | 34 | 0.004 | 6000 | 1.65 | H | 172/110/36 |
| DRD4950H72 | 7200 | 4950 | 79 | 31.2 | 0.004 | 6000 | 1.71 | H | 172/110/36 |
| DRD4690H85 | 8500 | 4690 | 74.5 | 27.75 | 0.004 | 6000 | 1.31 | H | 172/110/36 |
| DRD560G90 | 9000 | 557 | 10 | 0.5 | 0.032 | 1200 | 2.08 | G | 58/34/26.5 |
